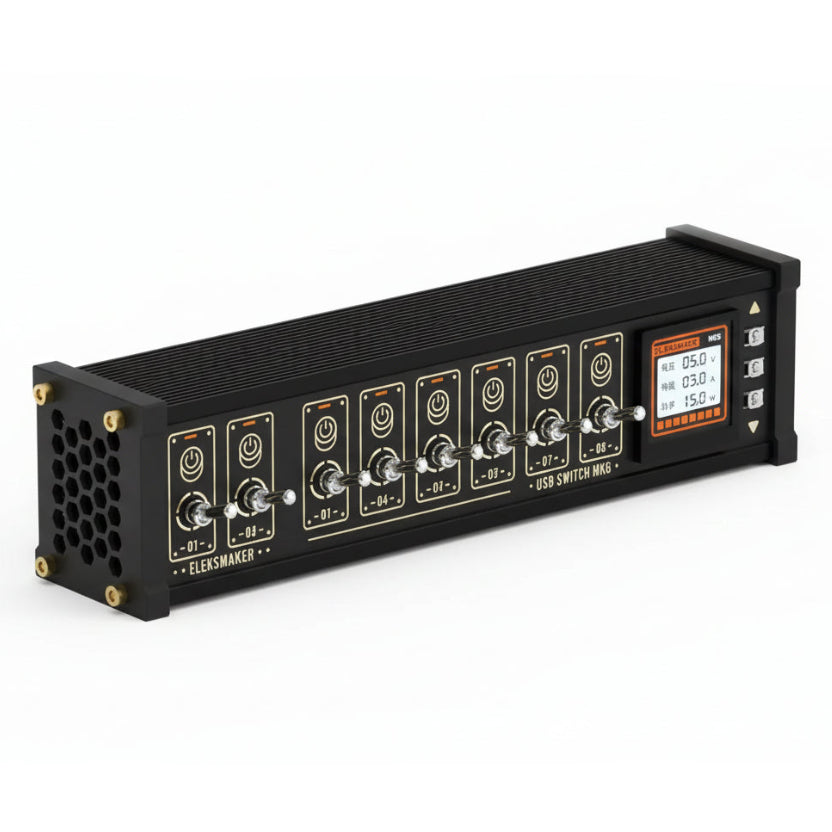

NK6 Advanced USB Hub with Real-Time Power Monitoring
The ultimate modular hub with IPS display, voice control, and independent channel management
The EleksMaker NK6 represents the pinnacle of the NK Series evolution—a sophisticated USB hub that combines the iconic black-and-gold industrial aesthetic with cutting-edge power monitoring technology. Featuring an IPS color display, 8 independently controlled ports, and optional voice commands, the NK6 transforms desktop power management into an elegant, data-driven experience.

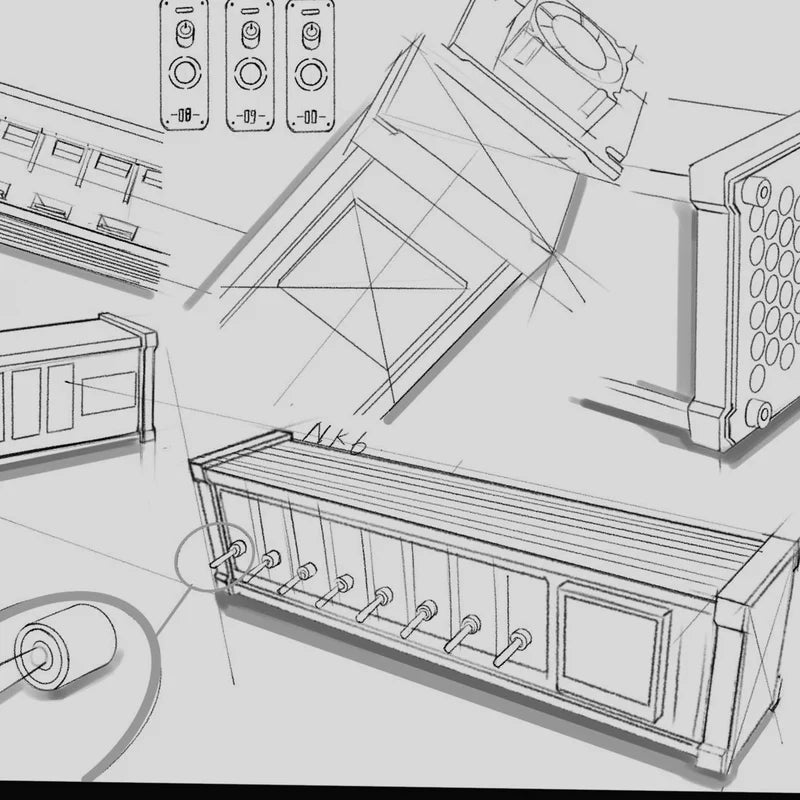

Premium Industrial Design
- Iconic Black & Gold Aesthetic: EleksMaker's signature design language featuring immersion gold-plated PCB for superior conductivity, corrosion resistance, and striking visual appeal
- Aluminum Alloy & ABS Construction: Hybrid material design balances premium metal durability with lightweight portability and refined tactile feedback

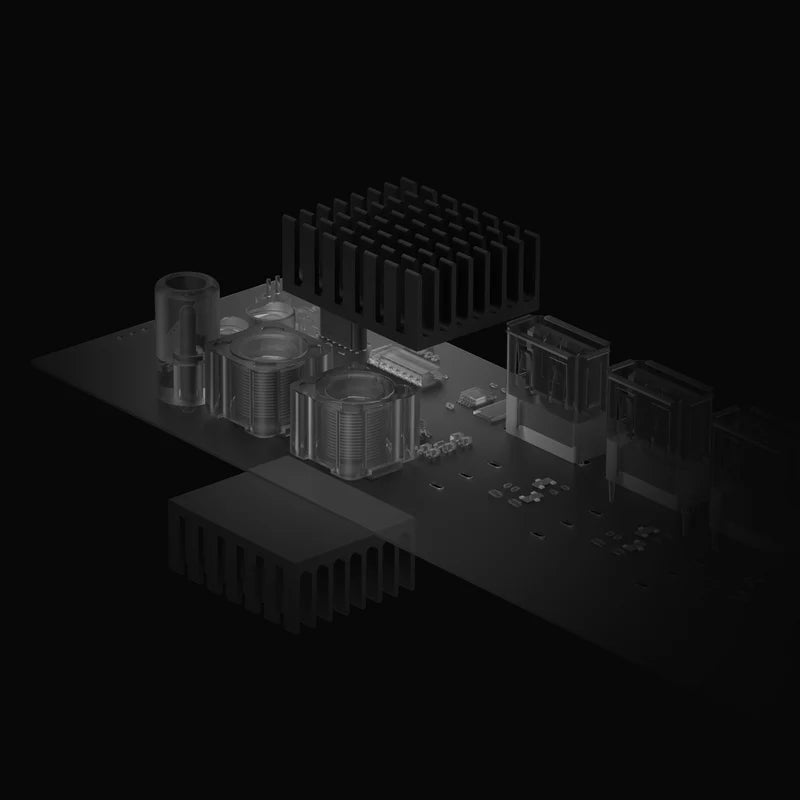

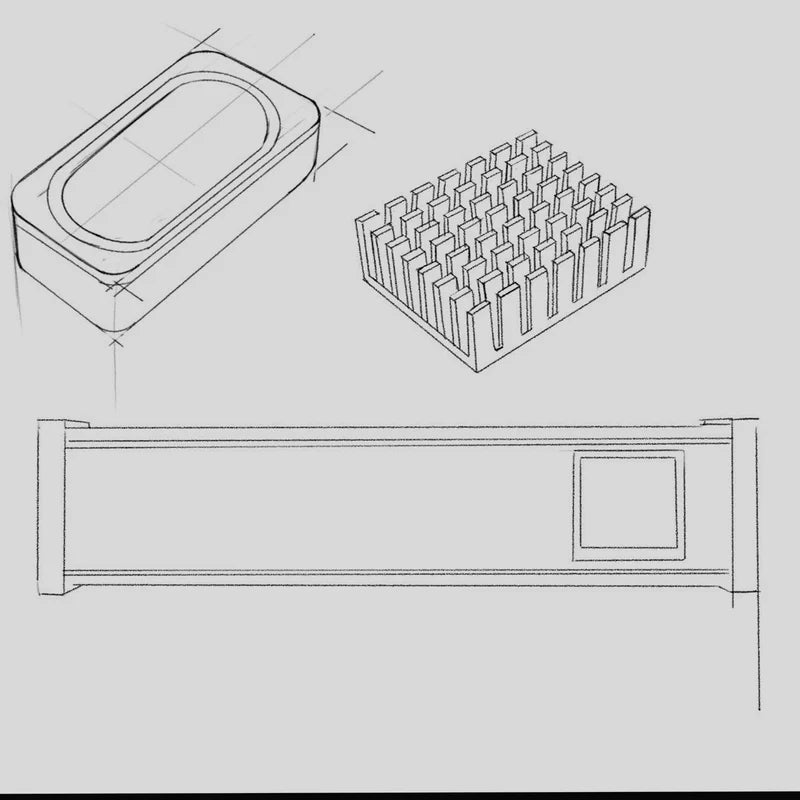

- Advanced Thermal Management: Hollow side panels combined with dual internal aluminum heat sinks ensure optimal heat dissipation even under continuous 35W load
- Compact Footprint: At just 210 × 43 × 53mm, the NK6 delivers maximum functionality without dominating your desk space
Comprehensive Connectivity

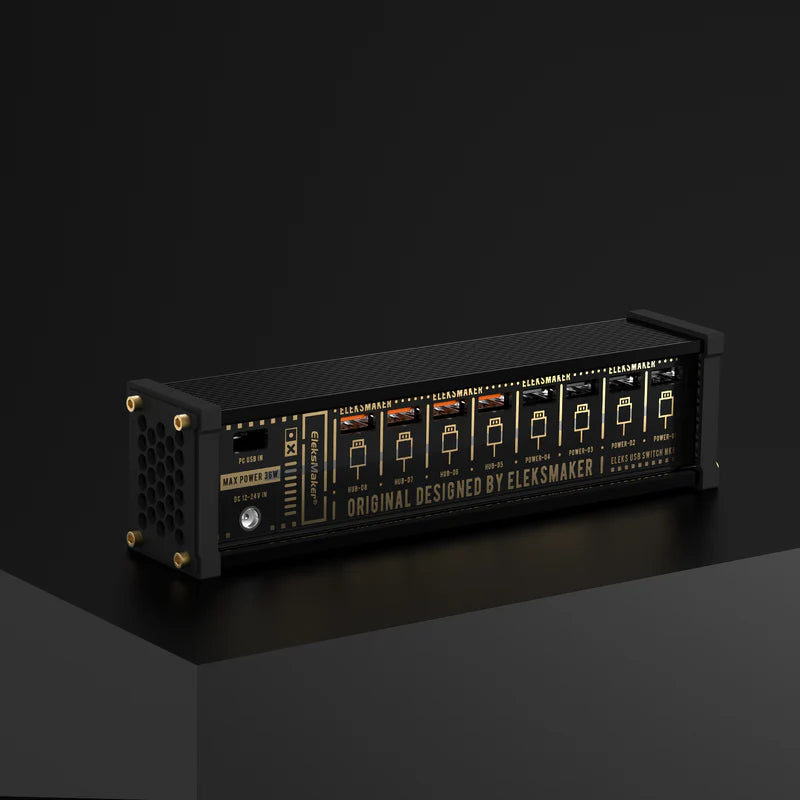

- 8 USB Ports Total: Connect up to eight devices simultaneously with a combined real power output of 35W for reliable, consistent performance
- 4 Independent Data Ports: Orange-coded USB ports with individual physical switches provide full data transfer capabilities and independent power control
- Adaptive Power Delivery: Intelligent power distribution automatically adjusts output to each device's requirements for optimal charging efficiency
- Flexible Power Input: Compatible with both DC 5521 and 5525 connectors, supporting 12-24V input range for maximum versatility with various power supplies

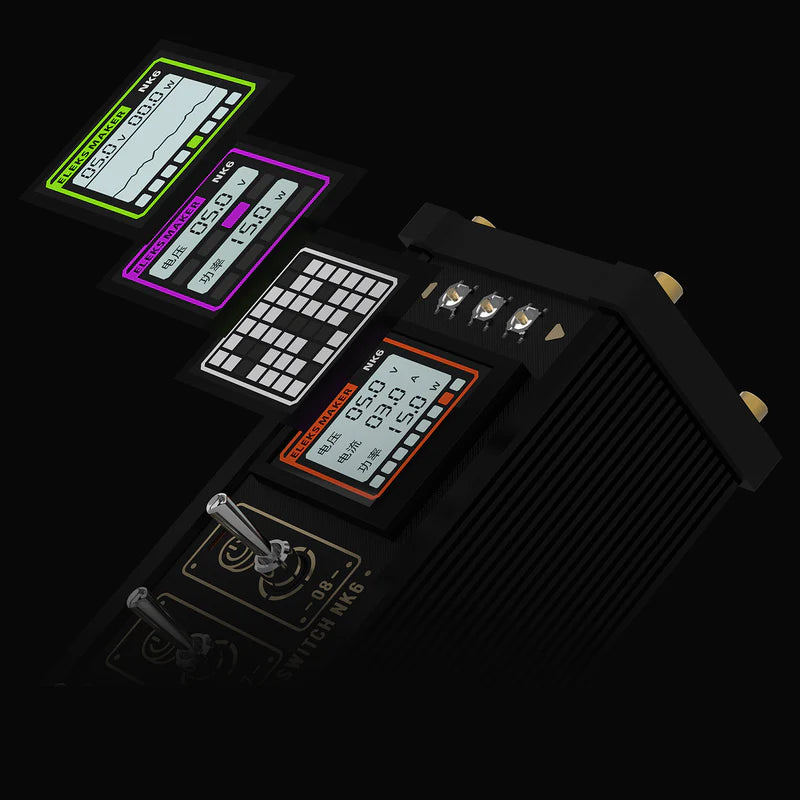

1.54" IPS Color Display
The NK6's high-definition 240×240 IPS screen transforms power management from guesswork into precision monitoring:
- Real-Time Power Metrics: Monitor voltage, current, and power consumption for each port at a glance—identify power-hungry devices instantly
- Power Consumption Curves: Visualize usage patterns over time to optimize your setup and identify anomalies
- Switch Status Overview: See which ports are active or inactive without checking each physical switch
- 10-Level Brightness Adjustment: Fine-tune display brightness from subtle ambient glow to full visibility in bright environments
- One-Click Sleep Mode: Instantly dim or turn off the display when monitoring isn't needed
- Multilingual Interface: Navigate menus in Chinese or English, plus enjoy built-in casual mini-games during downtime
Two Editions to Match Your Workflow
Choose the version that best fits your environment and preferences:
- NK6 Standard Edition: Features full voice control system—manage each power switch using voice commands for hands-free operation. Perfect for multitasking professionals who want to control their setup without interrupting their workflow
- NK6 Silent Edition: Removes voice control, microphone, and speaker for a minimalist, distraction-free experience. Ideal for quiet environments, recording studios, or users who prefer purely tactile control without audio feedback
Multiple Control Methods
- Physical Switches: Tactile, satisfying mechanical switches provide direct control over each USB port with instant feedback
- Menu Navigation Buttons: Dedicated controls for browsing the IPS display interface, adjusting settings, and accessing advanced features
- Voice Commands (Standard Edition): Hands-free power management through natural voice control—perfect for when your hands are occupied
Technical Specifications
| Model | NK6 (Standard / Silent Edition) |
| Dimensions | 210 × 43 × 53mm (8.27" × 1.69" × 2.09") |
| Body Material | Aluminum alloy + ABS plastic |
| PCB Type | Immersion gold-plated circuit board |
| Total USB Ports | 8 ports |
| Data Ports | 4 orange-coded ports with independent switches |
| Total Power Output | 35W (real power) |
| Power Input | DC 5521/5525 connector, 12-24V |
| Display | 1.54" IPS color screen (240×240 resolution) |
| Display Features | Voltage, current, power, consumption curves, switch status, 10-level brightness, sleep mode |
| Languages | Chinese, English |
| Cooling System | Hollow side panels + dual aluminum heat sinks |
| Control Methods | Physical switches, menu buttons, voice control (Standard only) |

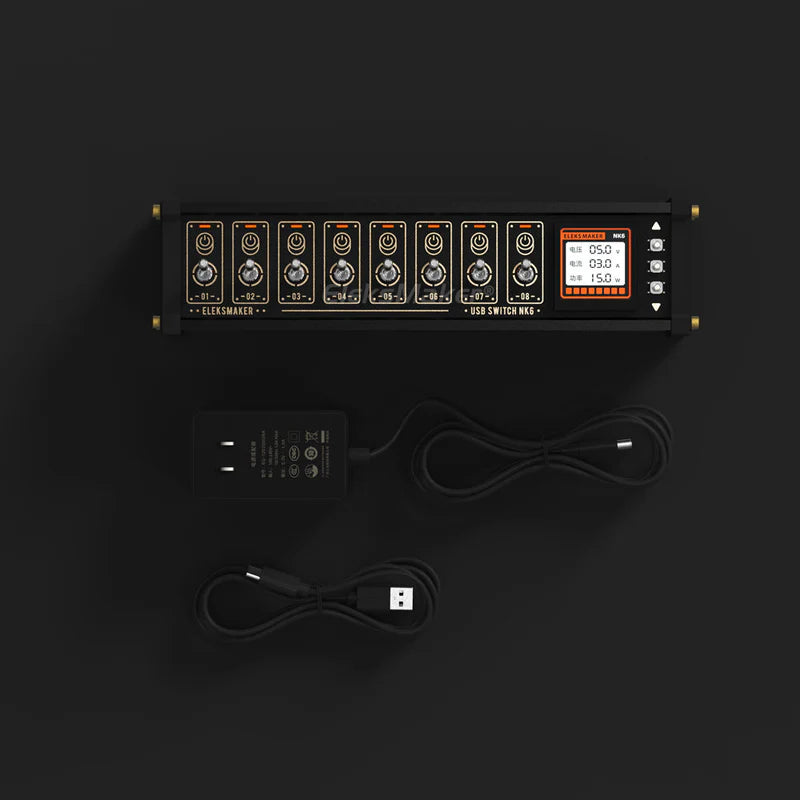

| Package Contents | NK6 unit, data cable, DC power supply, user manual |
Perfect For
- • Power users who need detailed monitoring of device power consumption
- • Content creators managing multiple peripherals, drives, and interfaces
- • Tech enthusiasts who appreciate data-driven insights and premium industrial design
- • Professionals optimizing energy efficiency and device management workflows
- • Audio engineers and producers (Silent Edition for noise-sensitive environments)
- • Anyone who values the combination of tactile control, visual feedback, and intelligent power management
Data-Driven Desktop Control
The NK6 transforms invisible power consumption into actionable insights. Watch real-time power curves, identify energy-hungry devices, optimize your setup for efficiency, and enjoy the satisfaction of knowing exactly what's happening at every port. Combined with EleksMaker's signature industrial aesthetics and premium build quality, the NK6 isn't just a USB hub—it's a desktop command center that celebrates the beauty of informed control.
The Ultimate NK Series Experience
Experience the most advanced iteration of EleksMaker's modular hub technology. The NK6 combines everything that made previous generations legendary—independent switches, premium materials, industrial design—with cutting-edge power monitoring and optional voice control. Choose Standard for maximum versatility or Silent for focused, distraction-free operation.
